SIDE DROP SLIDE-DS45
$935.00 Exc. Freight & Taxes

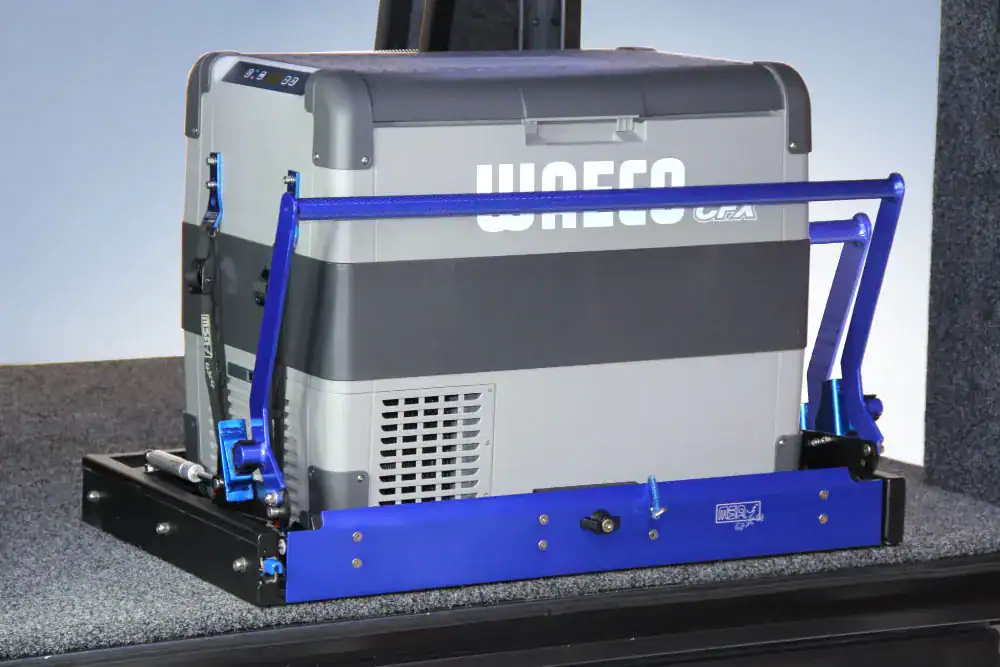

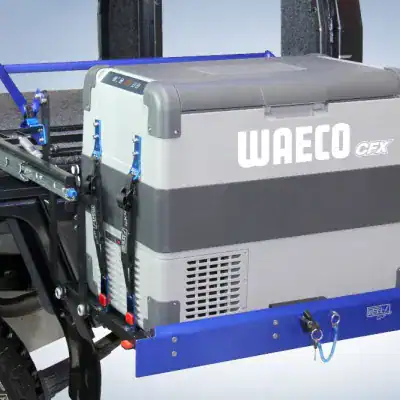

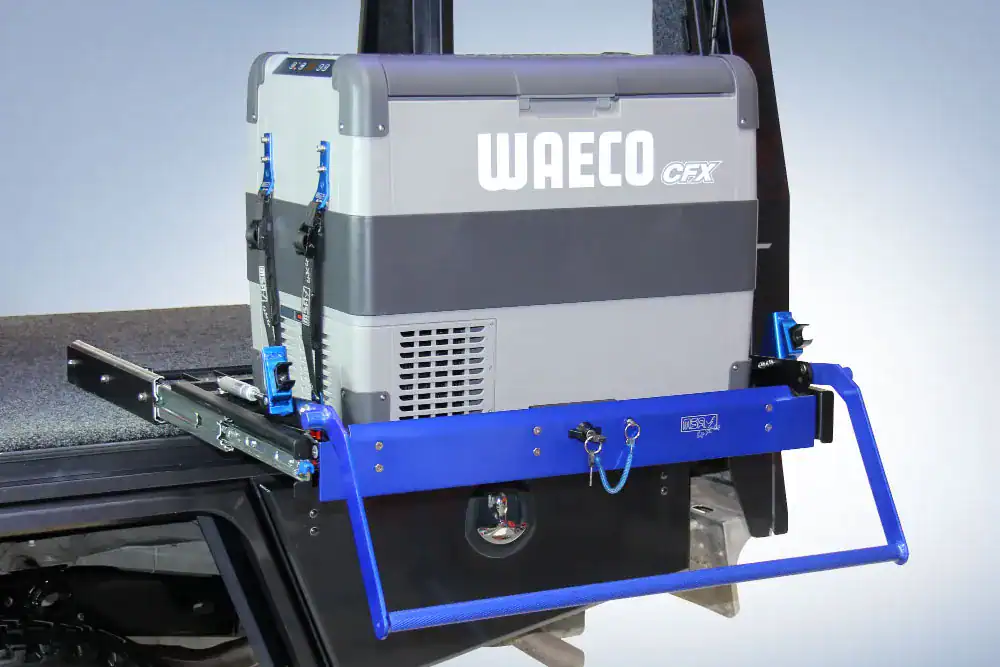

The SIDE DROP SLIDE-DS45 is the perfect addition to a 4WD set-up. Offering unrestricted access at a safe and convenient level to a fridge, toolbox or generator. The SIDE DROP SLIDE-DS45 includes a slimline handle allowing for the Slide to lower 30 centimetres while extending over the vehicle’s tailgate. The platform remains perfectly horizontal and avoids any contact with the vehicle. A blue anodised faceplate creates a tough, durable and easily recognisable feature, that is unique to all MSA 4X4 Slides. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 SIDE DROP SLIDE-DS45 is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.
Features:
- Compact size
- Easy install
- Lock-in and lock-out safety system
- Stainless steel and blue anodised aluminium fittings
- Powder-coated steel frame construction
- Travel lock and key
- Anodised blue faceplate
Includes:
- All fixing and tie-down straps
- Pre-drilled tray holes
- MSA 4X4 Lifetime Guarantee
Note:
4 sizes available to suit a variety of applications, click here to view size compatibility chart. MSA 4X4 Fridge Barriers available for all models.

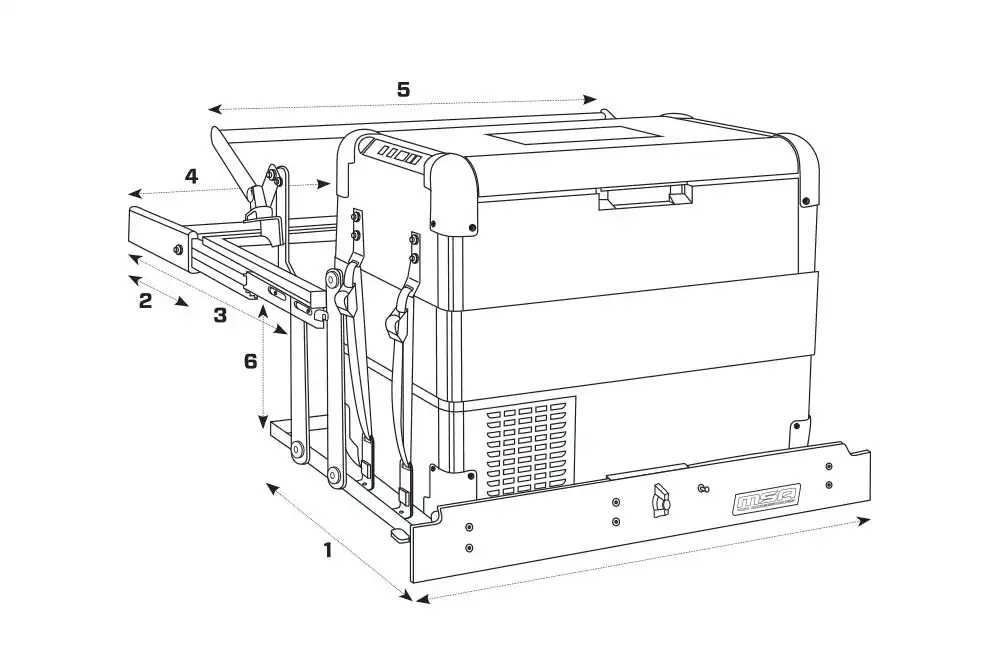

Weight | 80.2lbs / 40kg | |
Freight Dimensions | 1020×660×160 | |
Fridge Tray1 | 460×730 | |
Slide Length Closed2 | 530+20 | |
Slide Length Open3 | 1170+20 | |
Overall Width4 | 870+20 | |
Handle Width5 | 815 | |
Drop6 | 300 | |
Mount to Base | 35 | |
Max Set Back | 125 | |
Gas Strut | 800N | |
(all measurements displayed are in mm) |
