DROP SLIDE-DS95
$1,075.00 Exc. Freight & Taxes
The patented DROP SLIDE-DS95 is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

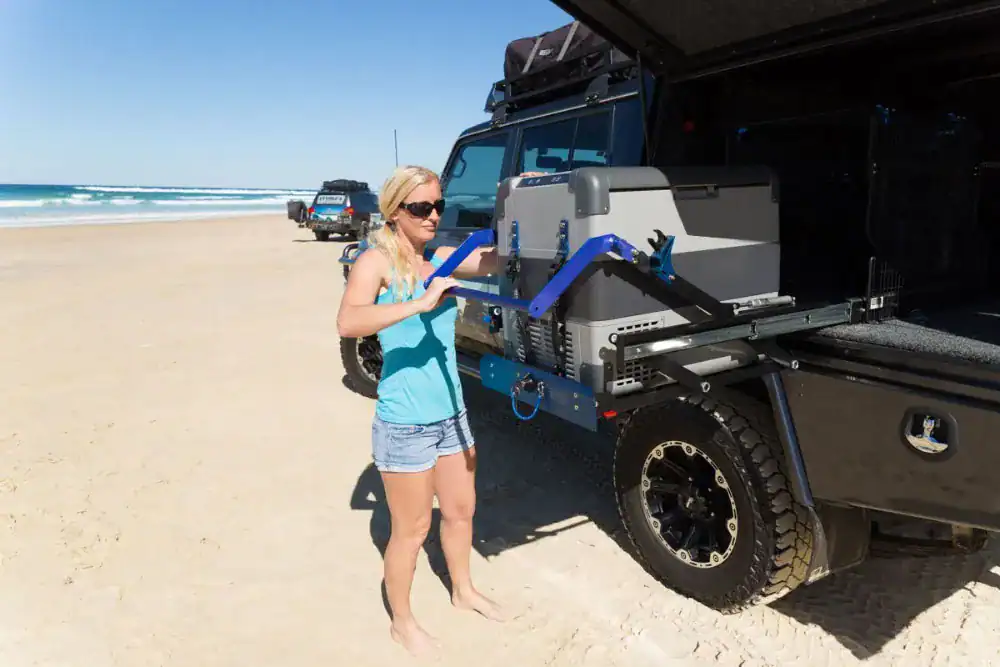

Using the slimline handle, the DROP SLIDE-DS95 lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle. The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The DROP SLIDE-DS95 is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.
Features:
- Compact size
- Easy install
- Lock-in and lock-out safety system
- Stainless steel and blue anodised aluminium fittings
- Powder-coated steel frame construction
- Travel lock and key
- Anodised blue faceplate
Note:
5 sizes available to suit a variety of applications, click here to view size compatibility chart. MSA 4X4 Fridge Barriers available for all models.

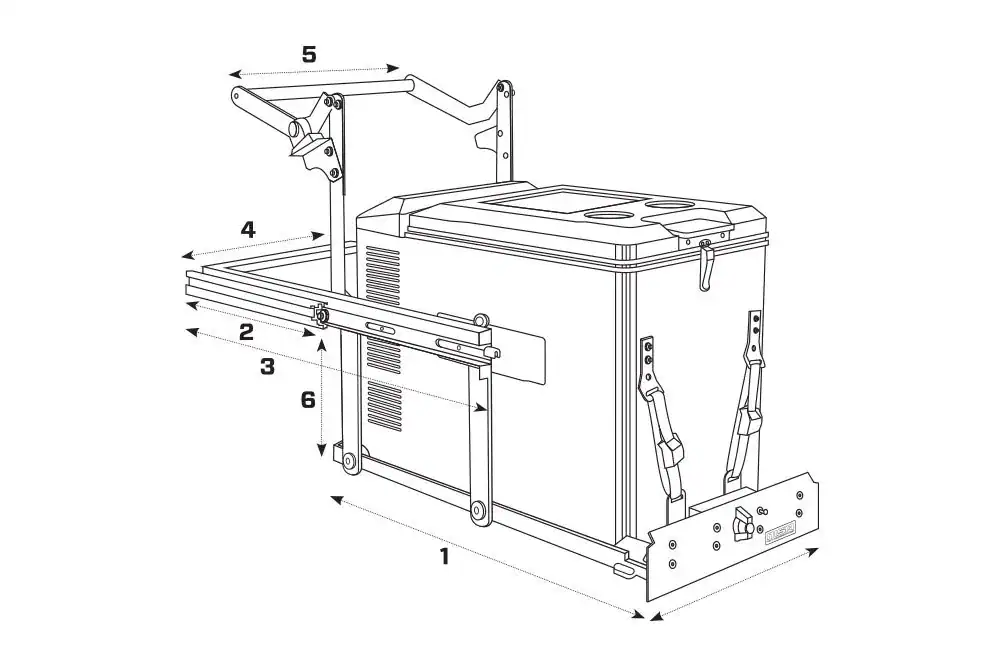

Weight | 110.2lbs / 50kg | |
Freight Dimensions | 1140×770×210 | |
Fridge Tray1 | 955×560 | |
Slide Length Closed2 | 1020+20 | |
Slide Length Open3 | 2170+20 | |
Overall Width4 | 670+20 | |
Handle Width5 | 610 | |
Drop6 | 300 | |
Mount to Base | 35 | |
Max Set Back | 150 | |
Gas Strut | 1000 N slow | |
(all measurements displayed are in mm) |
