270 XT Awning Mk2
$1,495.00 Exc. Freight & Taxes
The 270 XT Awning Mk2 sets new benchmarks for a free standing shade awning in terms of overall strength, wind resistance and durability. The 270 XT Awning Mk2 provides an incredible 8sqm (86sqft) of shade around your 4WD for you to set up your camp kitchen, swags or just a shaded seating/chill out area.
The awning is 2.3m / 90.5 inches in length, weighs only 27.8Kg / 61.3lbs and can easily be set up by one person in about 30 seconds and the pack down is just as simple.
The awning is available in either a Left Hand Side (driver’s side in USA) or Right Hand Side (passenger side in USA) configuration, please select which version you require from the drop down menu below.
There are 2 Heavy Duty L brackets supplied with the 270 XT Awning Mk2. One fitment bracket must be attached to the stainless steel head stock at the hinged end of the awning no more than 200mm (7 ⁷/₈inch) from the hinged end, The second bracket must be mounted no less than 1.3m (4′ 3″) from the bracket at the hinged end. To mount the awning to one of our rooftop tents you will need an Awning To Tent bracket which are sold separately.
270 XT Awning Mk2 - Overview
The 270 XT Awning Mk2 is made in South Africa from the finest quality components and provides +/-8m2 / 86ft2 of shade around your 4WD for you to set up your camp kitchen, swags or just a shaded seating/chill out area.
If you want to close in the area underneath the awning, the 27 XT Awning Wall Kit is a grea option, or if you only want a wind break or a little privacy then check out the solid canvas universal single walls.

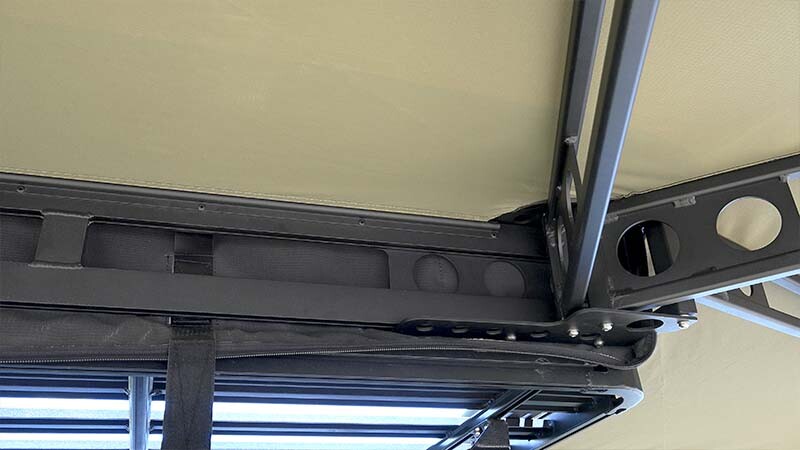

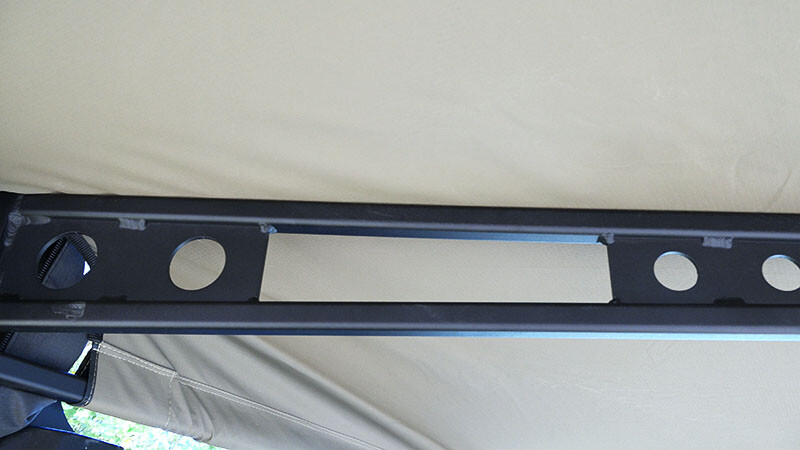

As you can see from the video the awning is easily set up by one person in about 60 seconds and the pack down is just as simple. The structure of the 270 XT Awning Mk2 is made from an extruded alloy composite which has been specifically designed to provide the elasticity, strength and durability required to enable this awning to be fully free standing. The main brackets for the hinge is constructed from stainless steel providing huge strength. The main arms on the awning have been gusseted for additional strength, which enables the awning to be fully free standing without any poles in even strong wind conditions. The rear single arms are strengthened with a honeycomb cross section throughout their length.
The canvas on the 270 XT Awning Mk2 is 315gsm/11.3oz poly-cotton rip-stop canvas in The Bush Company's traditional olive green colour that is mould and mildew resistant. There are no seams in the canvas section (not including the edges) and the canvas is pre-treated during manufacture for water resistance. Like any canvas it should be seasoned before use by pre-wetting and drying, and over time if the stitched areas show signs of water ingress this is easily treated with a canvas aqua proof product to seal the stitch holes. Where the canvas is attached to the ends of the awning arms there is additional triple reinforcement to eliminate chafing, and the front and rear arms slide into a triple stitched canvas sleeve.

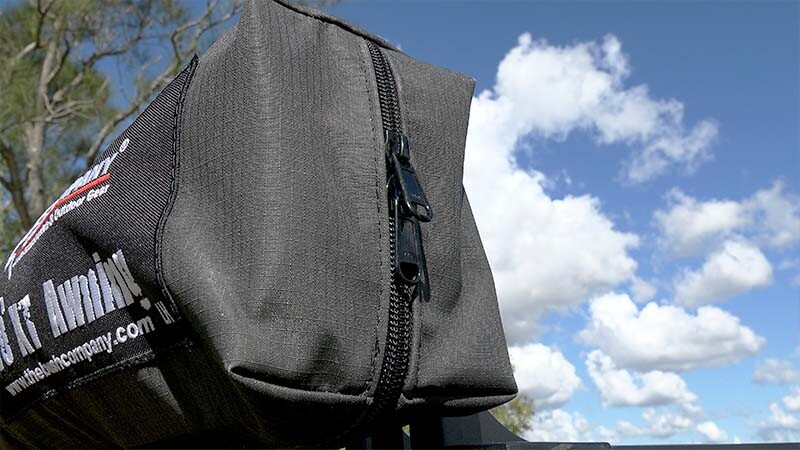

The 270 XT Awning Mk2 bag is 460gsm/16.2oz poly-cotton rip-stop canvas with YKK Zippers. In contrast to PVC awning covers, the canvas allows the awning to breath while keeping it dust/dirt free and moisture is able to wick out through the zipper reducing the risk of mould or mildew. The rip-stop material on the bag also reduces the risk of large running tears in the bag as a result of contact with tree branches, and the front and rear sections of the bag have a double layer of canvas providing extra protection.
We do not supply poles for the awning as it does not need them, but we do supply guy ropes and pegs. It is recommended that rear arm is pegged down whenever the awning is deployed to prevent excessive upward movement as the rear arm is reinforced but not gusseted. The guy ropes attach to the 1 tonne webbing straps that are attached to the canvas at the ends of the arms and midway along each canvas section.
In conjunction with the natural rake of the awning, the guy ropes should be used to prevent pooling of water on the canvas and to guide water runoff in preferred places. We do not recommend leaving the awning up unattended during snowfall due to risk of canvas stretching due to excessive weight.
Using & Caring For Your Awning
Before Use:
We recommend that new awnings are thoroughly wet down before first use. This will ensure that your awning performs well in wet weather by allowing the poly/cotton corespun thread and canvas to swell ensuring the take up of any potential leaks in the stitching.
Deploying & Packing Away:
- When unzipping the awning, make sure the zippers are right to the top of the bag at each end and that the bottom corners of the bag are not caught on the awning frame.
- When deploying your awning if the canvas seems excessively tight, STOP and check that the canvas is not caught on the hinge mechanism and that it has not slid too far one way in the sail-track on the awning frame.
- When packing the awning away, ensure that the canvas is not pinched between the awning arms especially close to the hinge mechanism.
- When you roll up your awning canvas please make sure that it is as tight as possible and that Velcro straps are secure, this helps to minimise movement during travel. Incorrectly packing away the awning could result in vibration and rubbing of the awning arms resulting in abrasion of the canvas.
- It is advised, especially after prolonged trips, to periodically check the mounting bolts securing the brackets to your vehicle and the awning to the brackets, as well as the bolts securing the head stocks of the awning to the frame.
Cleaning Canvas & Bag:
- Do not use soap or detergents on the canvas as this can result in colour leaching.
- To clean use a soft brush and cold water.
- Do not expose to petrol, oils or harsh chemicals.
Cleaning mould:
Your awning canvas is pre-treated with mould and mildew resistance, but if mould/mildew does occur please follow these steps:
- Allow mould to dry.
- Remove surface mould off with stiff bristle brush.
- Vacuum the area.
- Treat area with Oil of Clove spray (diluted spray can be purchased or can be mixed using a few drops of oil into a spray bottle of water).
Installing Your Bush Company Awning
A copy of the fitting instructions for The Bush Company awnings is available for download here
The Bush Company or one of our stockists can assemble install your awning, but if you choose to install the awning yourself please make sure that you have done the due-diligence on your intended install to ensure that it does not create any safety issues and ensure that you follow standard safety precautions when undertaking the install.
You may find it useful to watch the following videos:
