DROP SLIDE-DS50
$970.00 Exc. Freight & Taxes

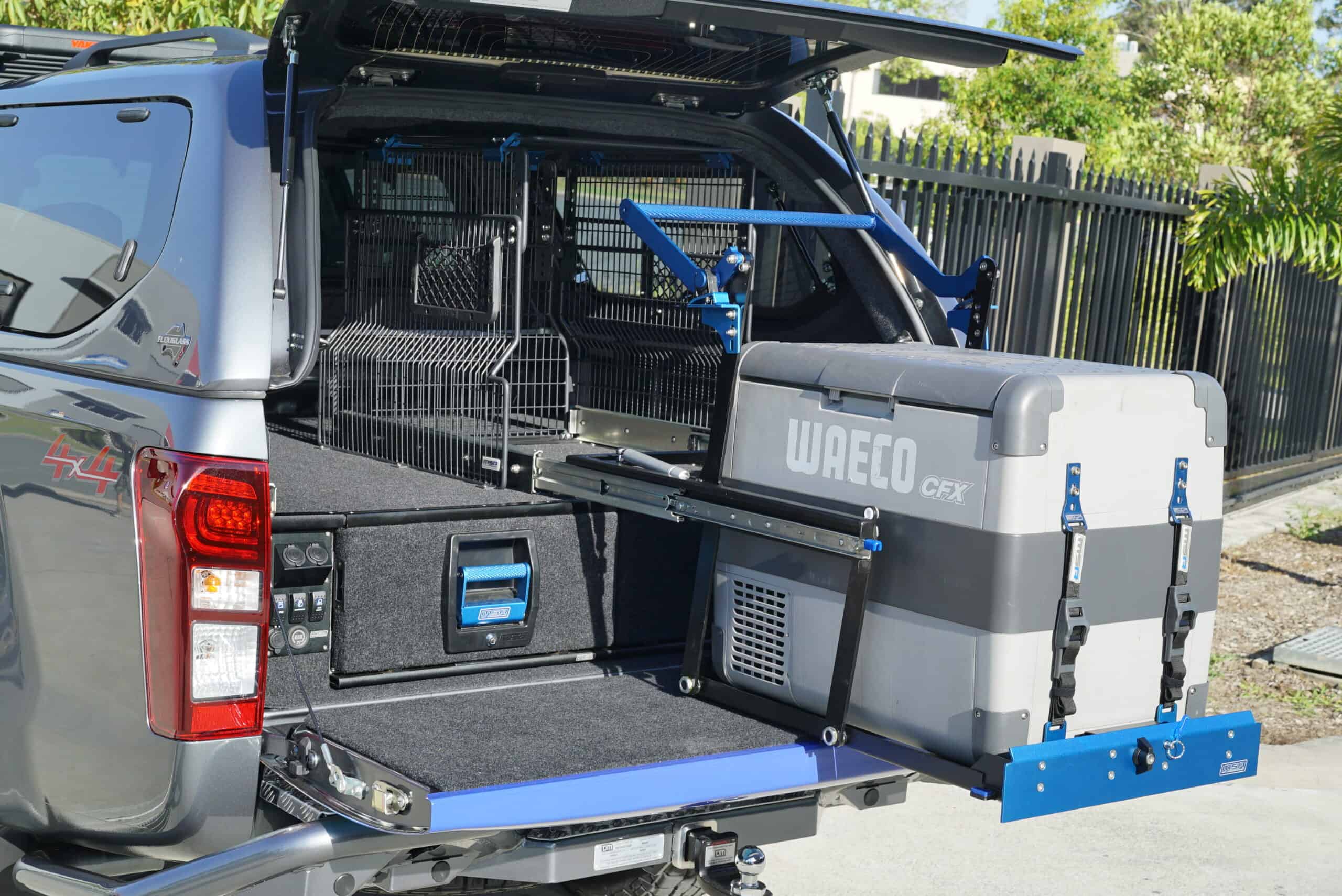

The patented DROP SLIDE-DS50 is designed to provide unrestricted access to a fridge, toolbox or generator at a safe, convenient level.

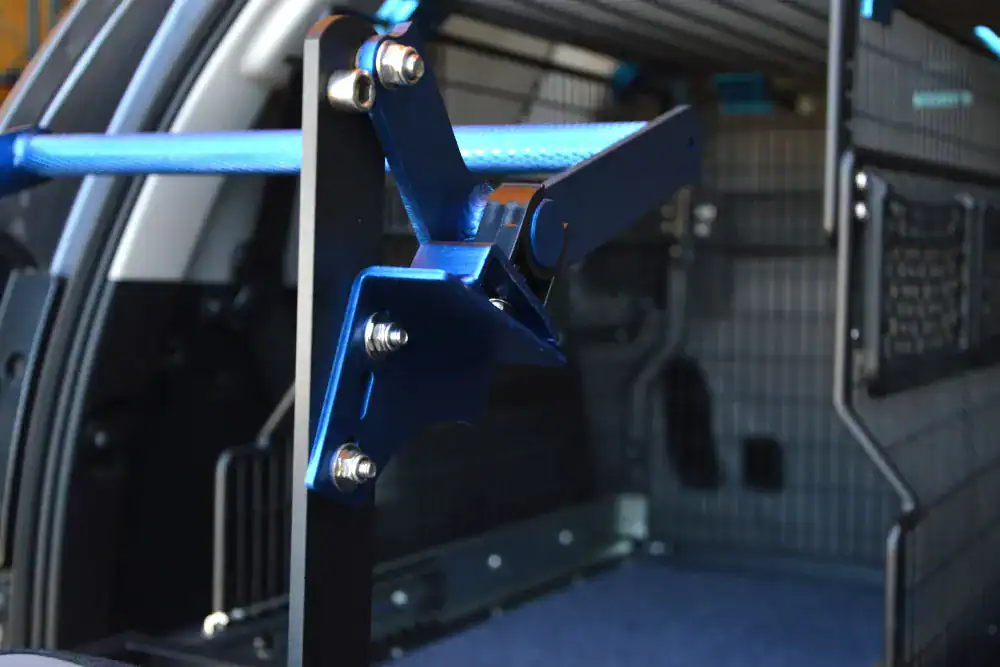

Using the slimline handle, the DROP SLIDE-DS50 lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle. The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 DROP SLIDE-DS50 is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.
Features:
- Compact size
- Easy install
- Lock-in and lock-out safety system
- Stainless steel and blue anodised aluminium fittings
- Powder-coated steel frame construction

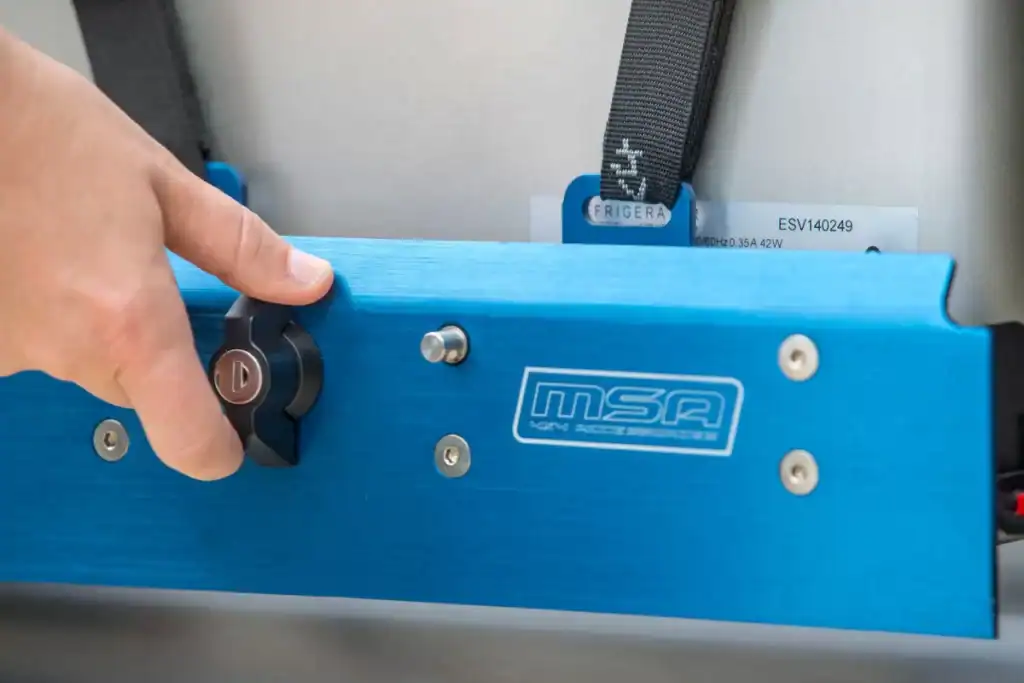

- Travel lock and key
- Anodised blue faceplate
Note:

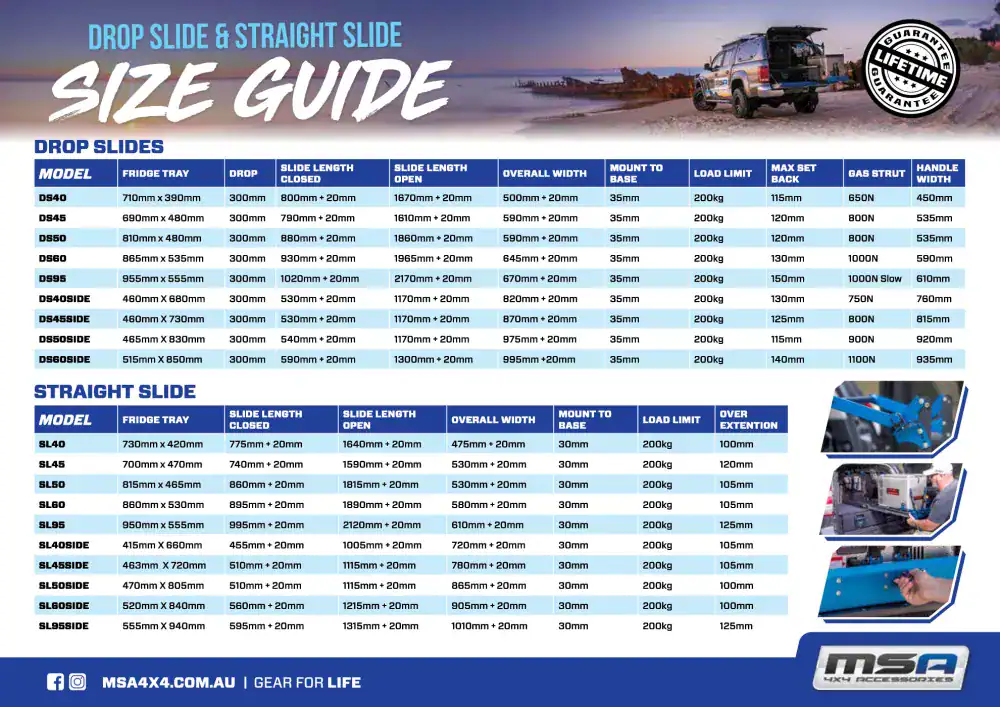

5 sizes available to suit a variety of applications, click here to view size compatibility chart. MSA 4X4 Fridge Barriers available for all models.

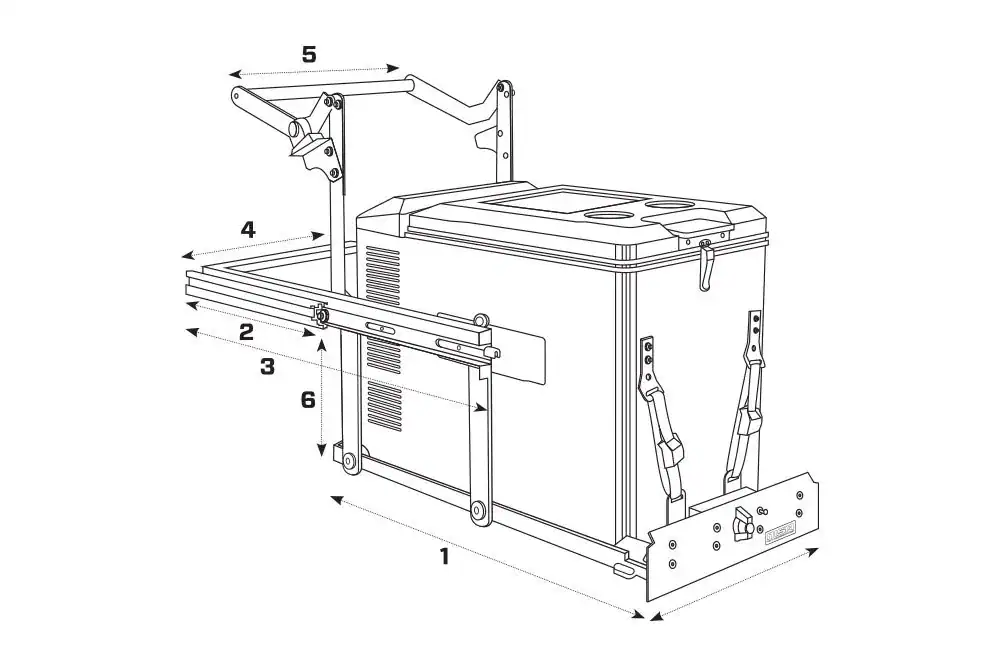

Weight | 82lbs / 40kg | |
Freight Dimensions | 980×690×170 | |
Fridge Tray1 | 810×480 | |
Slide Length Closed2 | 880+20 | |
Slide Length Open3 | 1860+20 | |
Overall Width4 | 590+20 | |
Handle Width5 | 535 | |
Drop6 | 300 | |
Mount to Base | 35 | |
Max Set Back | 120 | |

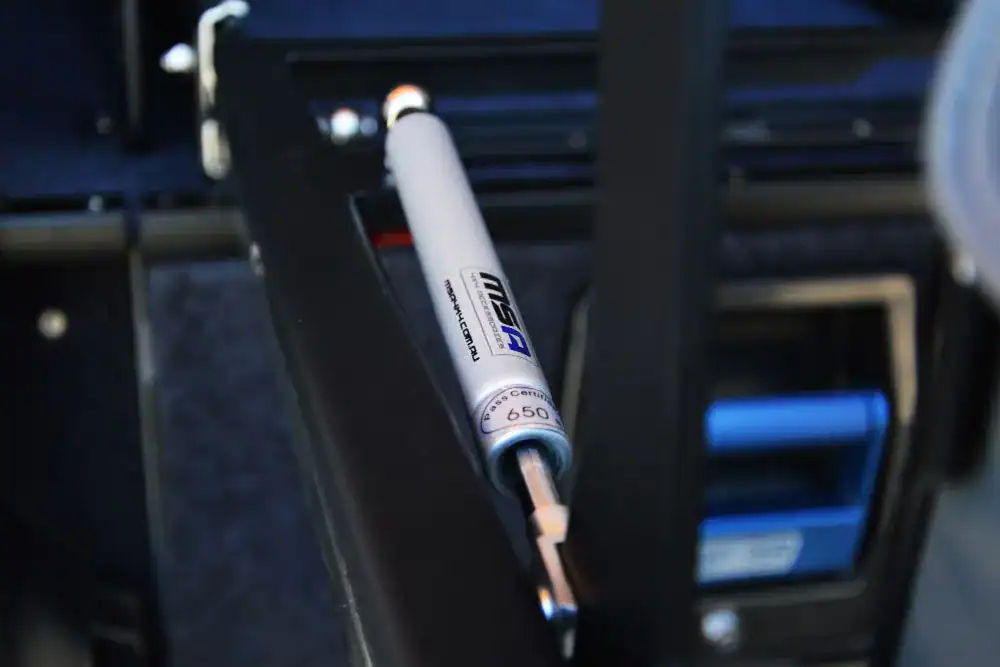

Gas Strut | 800N | |
(all measurements displayed are in mm) |
