DROP SLIDE-DS45 With Table
$1,345.00 Exc. Freight & Taxes

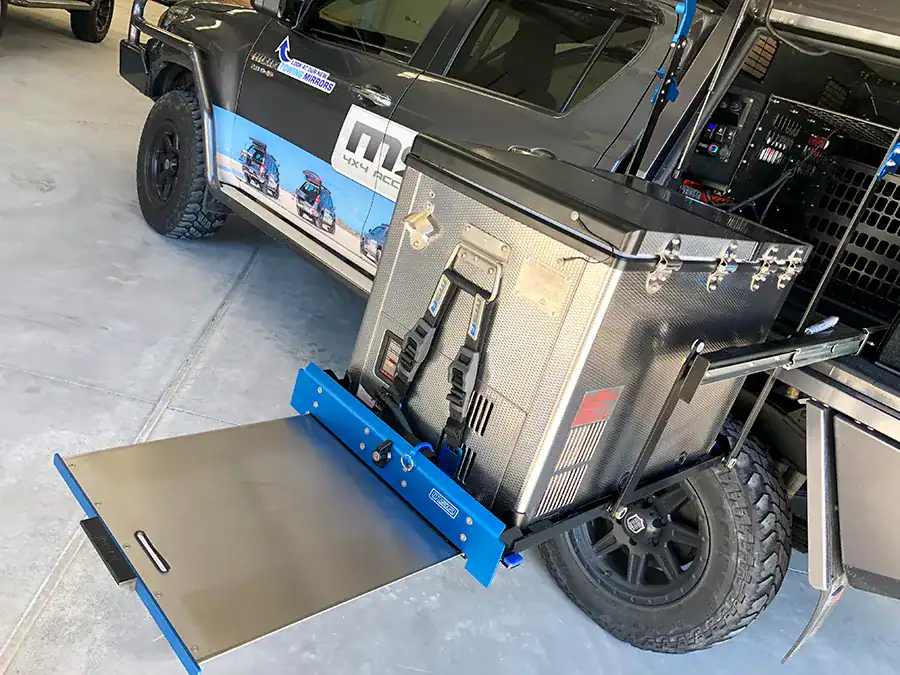

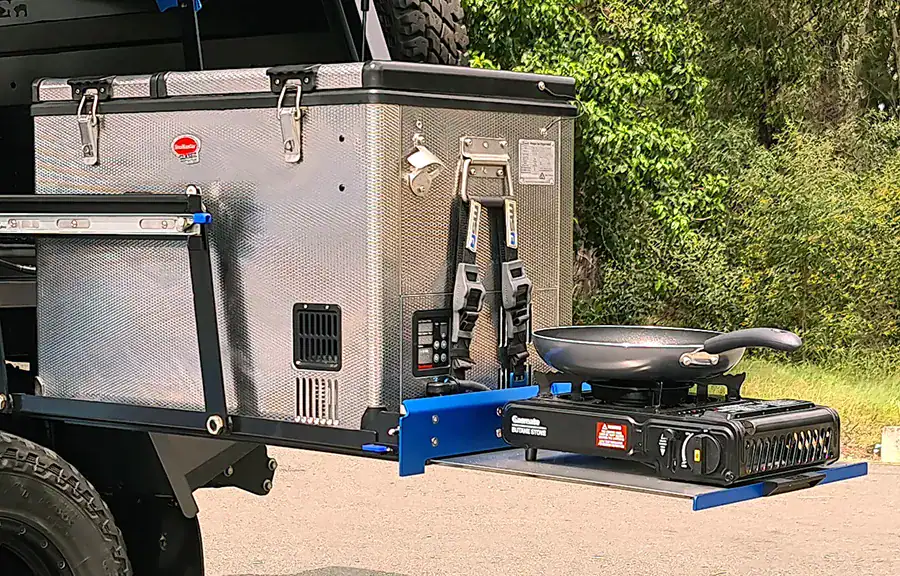

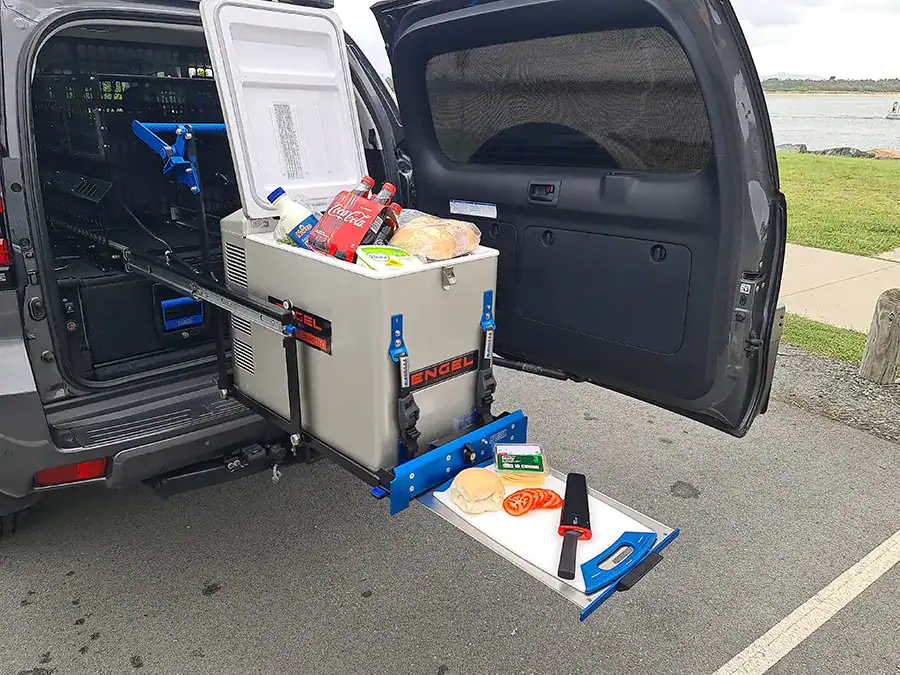

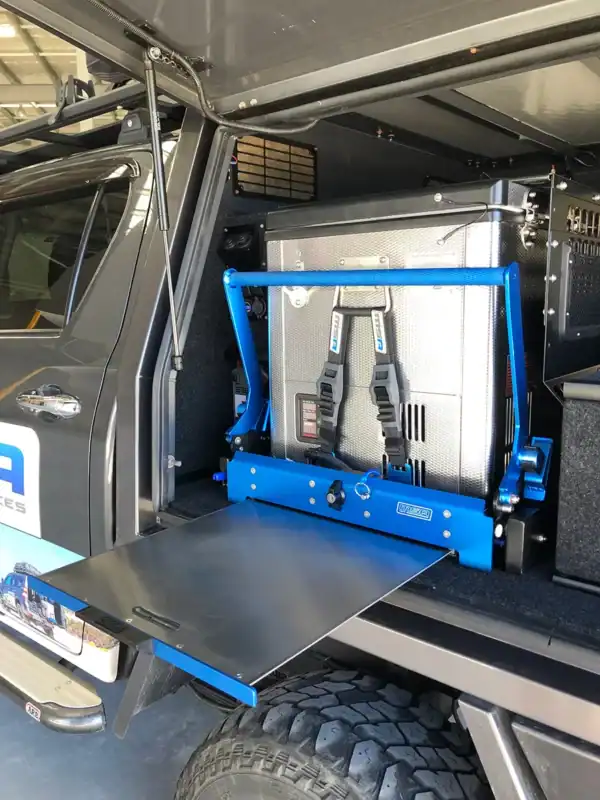

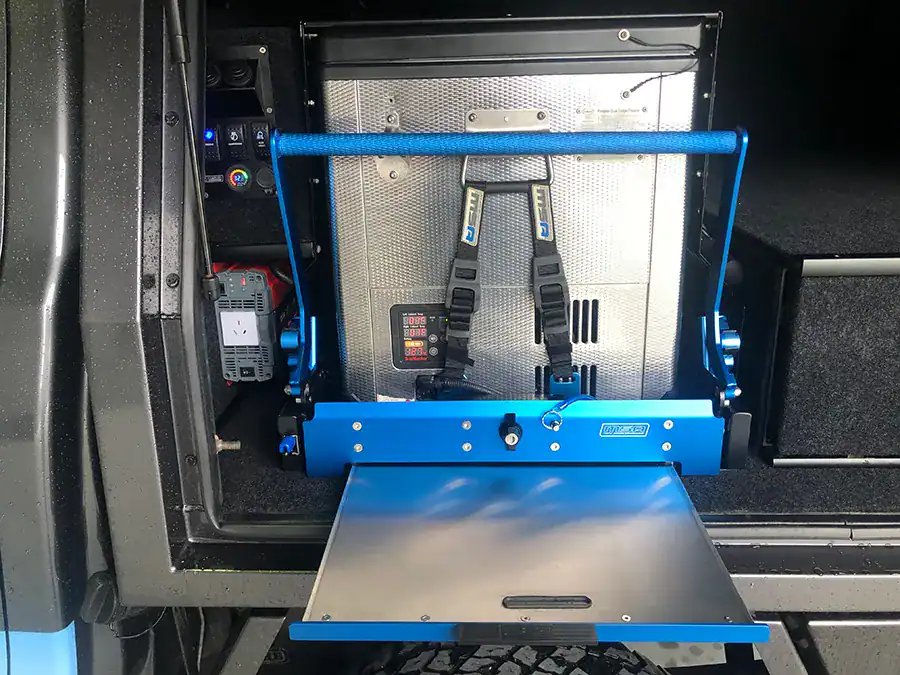

MSA 4X4 has taken it up a notch with the MSA 4X4 DROP SLIDE-DS45 With Table. This patented Drop Slide™ comes with a 316 stainless-steel pull-out table that can hold up to 16.5lbs/7.5kg.
Using the slimline handle, the DROP SLIDE-DS45 With Table lowers 30 centimetres while extending out further over the tailgate. This happens in one safe, smooth, controlled motion. At the same time, the platform remains in a perfectly horizontal position and avoids contact with the vehicle. The unique MSA 4X4 blue anodised faceplate provides a tough, durable and easily recognisable finish. The frame is constructed from powder-coated steel and the compact design maximises storage space within the vehicle. The MSA 4X4 DROP SLIDE-DS45 With Table is engineered to be easily installed and the pre-drilled tray holes provide anchor points for most popular fridges. The lock-in, lock-out safety feature locks the slide in its intended position while travelling, preventing potential damage to the fridge and vehicle.
Features:
- Slide-out 316 stainless steel table
- Compact size
- Easy install
- Lock-in and lock-out safety system
- Stainless steel and blue anodised aluminium fittings
- Powder-coated steel frame construction
- Travel lock and key
- Anodised blue faceplate
Includes:
- All fixing and tie-down straps
- Pre-drilled tray hole
- MSA 4X4 Lifetime Guarantee
Note:
5 sizes available to suit a variety of applications, click here to view size compatibility chart. MSA 4X4 Fridge Barriers available for all models.
Weight | 95.6lbs / 42kg | |
Freight Dimensions | 880×710×170 | |
Fridge Tray1 | 690×480 | |
Slide Length Closed2 | 790+20 | |
Slide Length Open3 | 1610+20 | |
Overall Width4 | 590+20 | |
Handle Width5 | 535 | |
Drop6 | 300 | |
Mount to Base | 35 | |
Max Set Back | 120 | |
Table Travel Distance7 | 420 | |
Table Width8 | 400 | |
Gas Strut | 800 N | |
(all measurements displayed are in mm) |
